EV type 2 charging cable 22kW (e-mobility type 2 charging cable 5m, IP55, 3-phase, mode 3 charging cable with bag for electric & hybrid vehicles)
Description
The EV type 2 charging cable 22kW with a length of 5m enables simple, fast and three-phase charging at public and private charging stations and wallboxes. The charging cable is supplied with a practical transport bag for easy transport and safe storage. This makes it easy to transport the cable and store it safely - whether in the vehicle or at home. All in all, this EV Charging Cable offers a fast, safe and convenient way to charge electric & plug-in hybrid vehicles with a type 2 vehicle plug. With its robust properties, easy handling and practical bag, it is a reliable charging solution for electric vehicles and plug-in hybrids. The type 2 charging cable also impresses with the following features:
- Plug/coupling: type 2 to type 2
- Charging mode: Mode 3
- Phases: 3-phase
- Cable length: 5m
- Rated current: 32A
- Rated voltage: 480V AC
- Ambient temperature: -30°C - +50°C
- Protection class plugged in: IP65
- Protection class unplugged with protective cap: IP55
- Type 2 plug and coupling have robust protective caps that provide reliable protection against moisture and dirt
- The cable is protected from damage or abrasion by a thick insulating jacket
- For operating and storage temperatures of -30°C - +50°C
Technical data
- Cable designation: Other
- Cable length: 5 m
- With residual current circuit breaker (RCCB): No
- Oil-resistant: Yes
- Degree of protection (IP): IP55
- Suitable for outdoor area: Yes
- Height: 7,20 cm
- Length: 35,50 cm
- Weight: 3 kg
- Width: 35,50 cm
- UV-resistant: Yes
Scope of supply

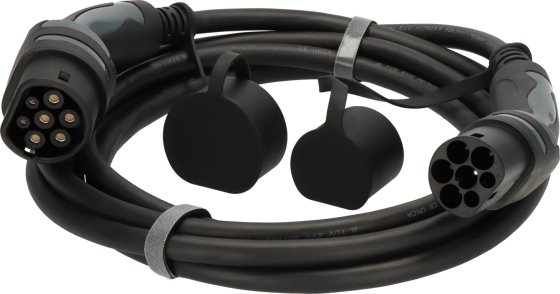

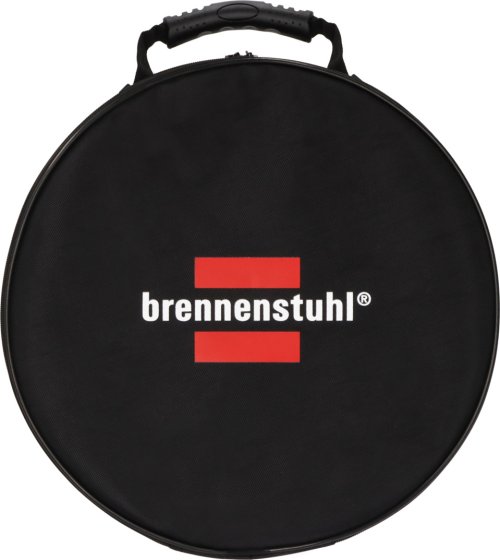

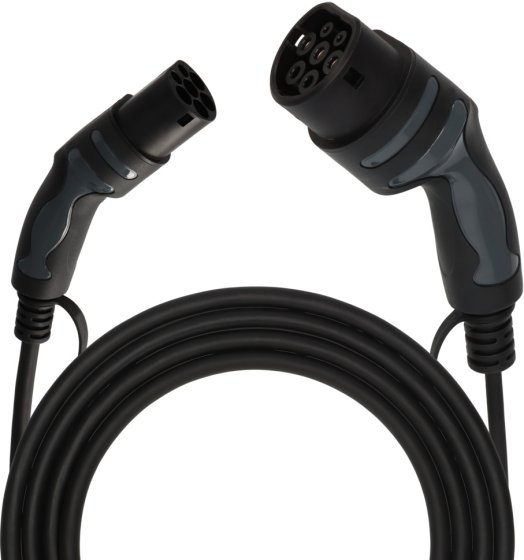

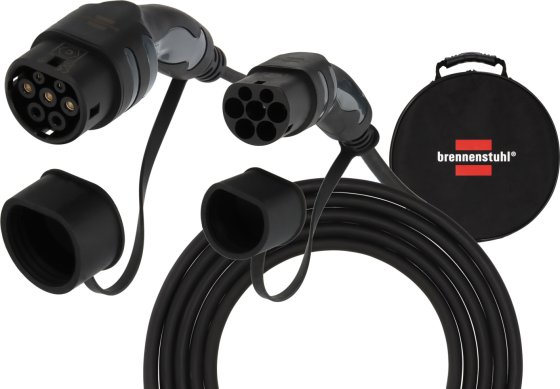

EV type 2 charging cable, transport bag
Downloads
All products are subject to technical changes
